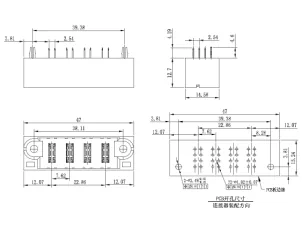

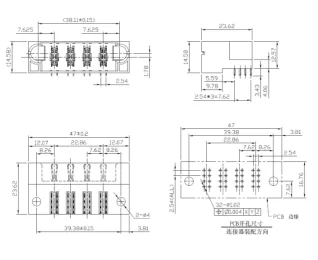

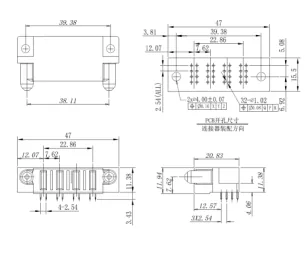

04P 90° RT female ——JYP-F0004D-RT01R(no fixed foot) can be divided into two types with fixed feet and no fixed feet, high power terminal3.43mm 04P - JYP-M0004D-VT01R 180 degrees VT male (with fixed foot) high power terminal 4.19mm, the fixed foot high 4.6mm 04P RT males, JYP-M0004D-RT01R 90 degree angle (no fixed foot) can be divided into fixed and non fixed feet two feet high, power supply terminal 3.43mm Note: 1: the company can make the product with a maximum length of 148mm, and customers can add or reduce the number of power supply by 2 according to the demand. Our company can design and develop products according to the needs of customers, such as shorter welding feet, higher core size and higher rubber content. Classification: Connector series, board to board connector, power connector, round connector Tags: MDL power blade connector ,Amphenol powerblade connector ,：-40℃~+125℃（Include 40℃ temperature rising） Relative Humidity：40℃时，95% Vibration： 20~500Hz， 490m/s² Shock： Acceleration 490m/s² Electri Performance Contact Specification Single contact withdrawforce ≥0.2N
| Name | Model / Paired model |
|---|---|
| 04P 180° VT female | JYP-F0004D-VT01R / JYP-M0004D-VT01R JYP-M0004D-RT01R |
| 04P 90° RTfemale | JYP-F0004D-RT01R / 04P 180° VT male |
| JYP-M0004D-VT01R | JYP-F0004D-VT01R JYP-F0004D-RT01R / 04P 90° RT male |
| JYP-M0004D-RT01R | Product Description: 4 power terminals, no signal terminals / 04P - JYP-F0004D-VT01R 180 degrees VT female (with fixed foot) high power terminal 3.5mm, the fixed foot high 4.7MM |
| Contact Resistance （mΩ） | Rated Current （A） / Voltage Rating （V） |
| Withstanding Voltage | lnsulation Resistance / 500VDC/1Min |
| 500VDC/1Min | Signal contacts （2.54mm pitch） Signal contact (2.54mm Pitch) / ≤20mΩ |
| Below 25 pcs,2.5A/pin | 50V / 1000V |
| ≥2000MΩ | 25-48 pcs,1.5A/pin / Over 48pcs,1A/pin |
| Power contacts (5.08mm Pitch) | ≤2mΩ / 40A |
| 250V | 2500V / ≥2000MΩ |
| Power contact (6.35mm Pitch) | 250V / 2500V |
| Power contact (7.62mm Pitch) | 300V / 2500V |
| Power contact (9.525mm Pitch) | 300V / 2500V |
| Technical Performance Contact Type | Contact stability / Single contact insertion force |
| Signal Contact | ≥10N / ≤1N |
| Power Contact | ≥30N / ≤5N |
| ≥2.2N | Mechanical Life :250 times |
Server and AI compute power shelves, UPS and distributed power supplies, telecom and data centre equipment, energy storage systems, EV charging piles, solar inverters, industrial power distribution and medical instrumentation.
distribution system for UPS, servers, storage enclosure, communication equipment , LED power supply, famous POWER SUPPLY power connector etc. More Products We are doing the OEM & ODM Connectors based on customers' needs
Powerblade connector: 51939-669LF 5ACP +24S+5ACP , 24S+10P , right angle, solder to board, Female: VerticalMale: Right anglePower pin's current: 40A/pinSignal pin's current: 2.5A/pin MDL(MEDLON JYP-M2410D-RT45 & JYP-F2410D-VT45R)Hot Tags: b
