distribution system for UPS, servers, storage enclosure, communication equipment , LED power supply, famous POWER SUPPLY power connector etc. More Products We are doing the OEM & ODM Connectors based on customers' needs

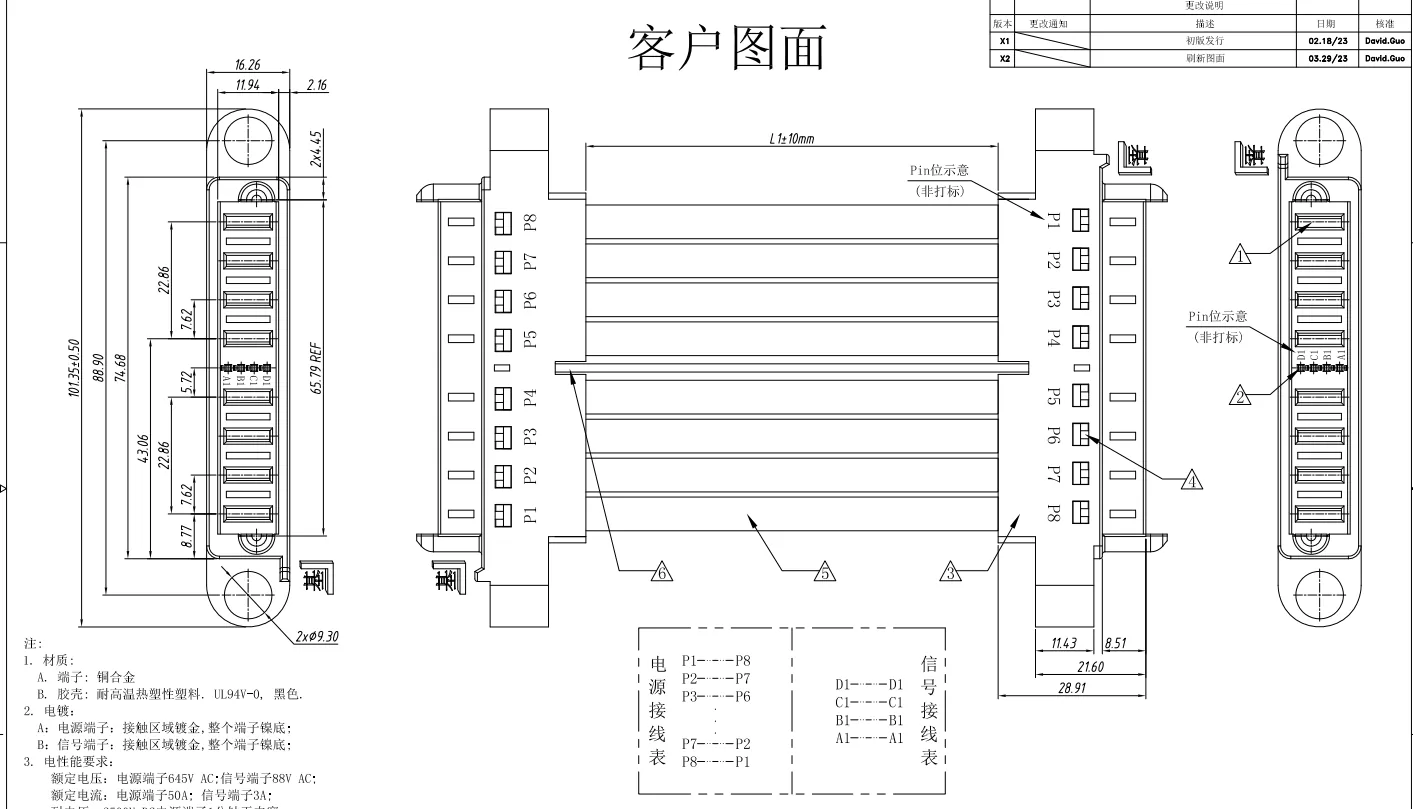

| Product model | JYP-F0408D-VT75R-ZZ-REV.x2/JYP-M0408D-RT92R |
|---|---|
| Contact Type | Female / Contact |
| Number of Contacts | 8 / 4 |
| Pitch | 7.62mm / 2.54mm |
| Rated Current | 50A / 3A |
| Rated Voltage | 645V AC / 88V AC |
| Withstanding Voltage | 2500VDC/min / 1000VDC/min |
| Insulation Resistance | 2000MΩ min / 2000MΩ min |
| Contact Resistance | 2mΩ max / 20mΩ max |
| Material: Housing: PPA , UL94V-0, Black | Power contact:High conductivity copper alloy,partial or all gold plating / Signal contact:Phosphor bronze,partial or all gold plating |
| Operating Temperature | Operating Temperature: -40 to 125℃ (including 40℃ temperature rise) / Relative Humidity: 95%(40℃) |
| Relative Humidity | 40℃时，95% |
| Vibration | 20~500Hz， 490m/s² |
| Shock | Acceleration 490m/ s² |
| Mating Cycles | 250 times |
| Power Contact | High conductivity copper alloy,partial or all gold plating |
| Signal Contact | Phosphor bronze,partial or all gold plating |
Server and AI compute power shelves, UPS and distributed power supplies, telecom and data centre equipment, energy storage systems, EV charging piles, solar inverters, industrial power distribution and medical instrumentation.
Powerblade connector: 51939-669LF 5ACP +24S+5ACP , 24S+10P , right angle, solder to board, Female: VerticalMale: Right anglePower pin's current: 40A/pinSignal pin's current: 2.5A/pin MDL(MEDLON JYP-M2410D-RT45 & JYP-F2410D-VT45R)Hot Tags: b
Shenzhen Medlon Hardware Product is a leading global connector design and manufacturing company. We have more than 17 years of experience in providing a wide range of high-quality connectors for various industries such as Consumer electroni
Hot Tags: About Medlon，product list，board to board connector，power connector，round connector，high-power gold finger connector socket
Same function with STAUBLI CombiTaC modular connectors CombinConn modular connectors are widely used in the industrial field, and they can connect various types of connections, such as power supply Signal, data, thermocouples, coaxial, fibe
Shenzhen Medlon Hardware Product is a leading global connector design and manufacturing company. We have more than 17 years of experience in providing a wide range of high-quality connectors for various industries such as Consumer electroni
Shenzhen Medlon Hardware Product is a leading global connector design and manufacturing company. We have more than 17 years of experience in providing a wide range of high-quality connectors for various industries such as Consumer electroni
Send the original part number, drawing or interface requirement — we reply within 24 hours.
