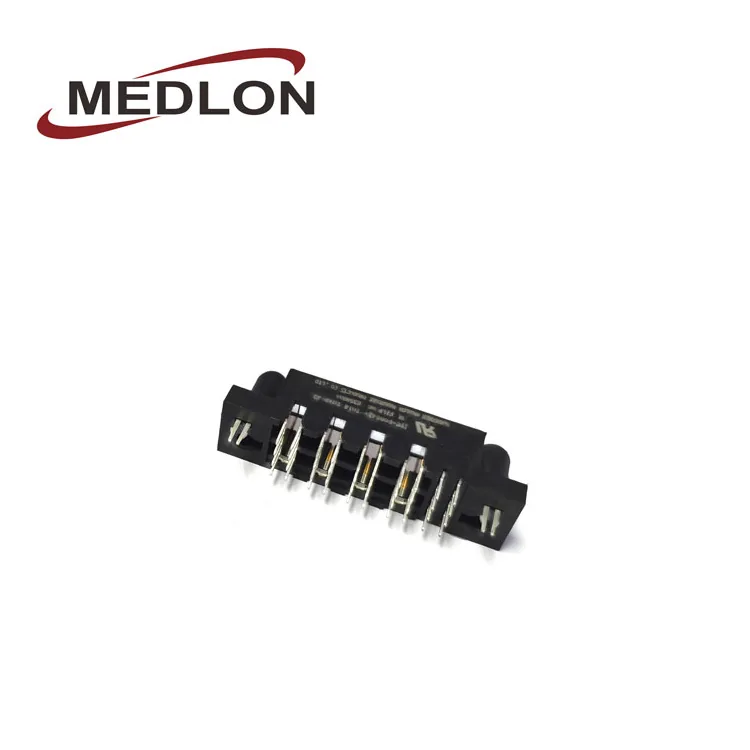

Medlon JYP-0804B-VT01R male female power blade telecom connector Hot Tags: board to board connector,power connector,round connector Tags: About MEDLON, more connector products Product Informationdistribution system for UPS, servers, storage enclosure, communication equipment , LED power supply, famous POWER SUPPLY power connector etc. More Products We are doing the OEM & ODM Connectors based on customers' needs

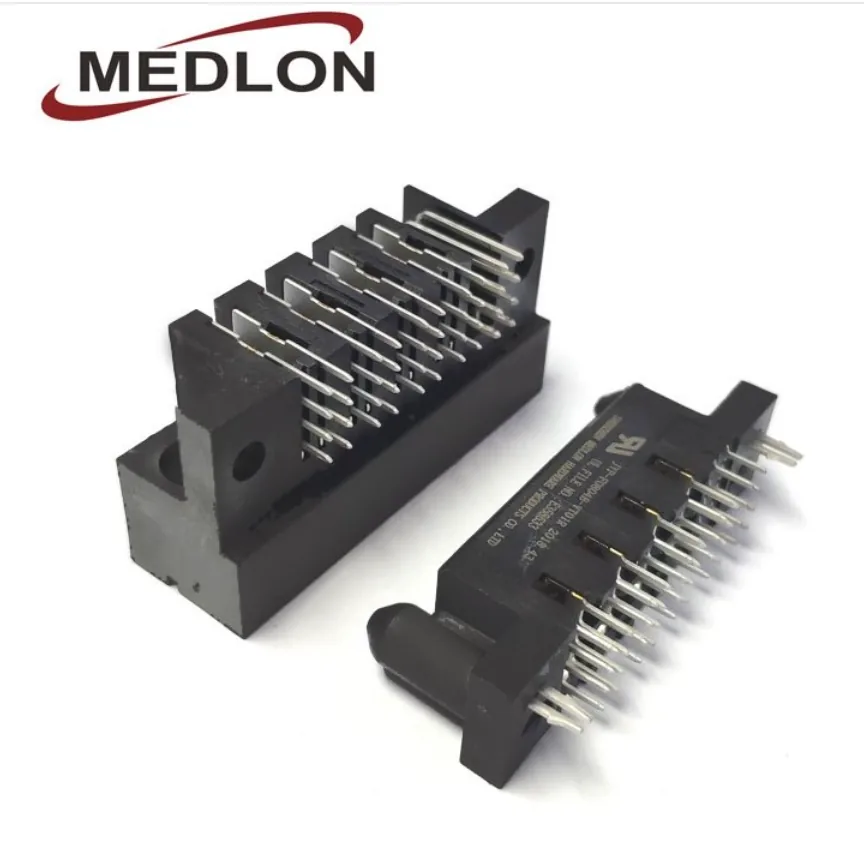

| Product model | MDL JYP-F0804B-VT01R / JYP-M0804B-RT01R /JYP-F0804B-RT46R/JYP-M0804B-VT46R |
|---|---|
| Contact Type | Female / Contact |
| Number of Contacts | 4 / 8 |
| Pitch | 6.35mm / 2.54mm |
| Rated Current | 40A / 2.5A |
| Rated Voltage | 250V / 60V |
| Withstanding Voltage | 1000VDC/min / 2500VDC/min |
| Insulation Resistance | 10000MΩ min / 500MΩ min |
| Contact Resistance | 2mΩ max / 20mΩ max |
| Material: Housing: PPA , UL94V-0, Black | Power contact:High conductivity copper alloy,partial or all gold plating / Signal contact:Phosphor bronze,partial or all gold plating |
| Operating Temperature | Operating Temperature: -40 to 125℃ (including 40℃ temperature rise) / Relative Humidity: 95%(40℃) |
| Relative Humidity | 40℃时，95% |
| Vibration | 20~500Hz， 490m/s² |
| Shock | Acceleration 490m/ s² |
| Mating Cycles | 250 times |
| Power Contact | High conductivity copper alloy,partial or all gold plating |
| Signal Contact | Phosphor bronze,partial or all gold plating |
Server and AI compute power shelves, UPS and distributed power supplies, telecom and data centre equipment, energy storage systems, EV charging piles, solar inverters, industrial power distribution and medical instrumentation.
distribution system for UPS, servers, storage enclosure, communication equipment , LED power supply, famous POWER SUPPLY power connector etc. More Products We are doing the OEM & ODM Connectors based on customers' needs
Powerblade connector: 51939-669LF 5ACP +24S+5ACP , 24S+10P , right angle, solder to board, Female: VerticalMale: Right anglePower pin's current: 40A/pinSignal pin's current: 2.5A/pin MDL(MEDLON JYP-M2410D-RT45 & JYP-F2410D-VT45R)Hot Tags: b
