Product Overview

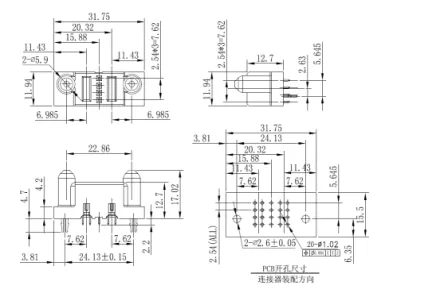

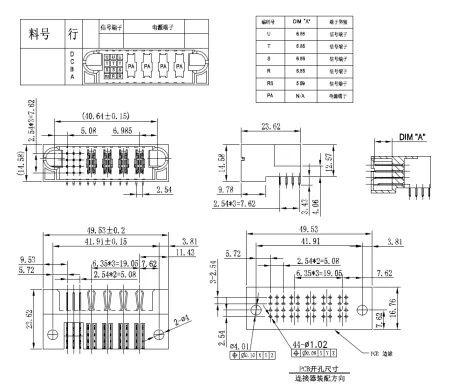

Classification: board to board connector, power connector, round connector Tags: About Medlon，More connector products Name 04S+02P 180 degrees (short) - JYP-F0402E-VT21R direct parent (with fixed foot); high power signal terminal 2.20mm, the fixed foot high 4.7MM 03P mother - JYP-F0003D-RT03R (90 DEG bend with a fixed foot) bending parent can be divided into fixed and non fixed foot two feet, a power supply terminal contact points PG-1.07 and PH-3.57 two, leg fixed foot high 3.43mm, high 3.94mm 04S+02P 180 degrees straight (short) - JYP-M0402E-VT21R male (with fixed foot); high power signal terminal 2.2mm, the fixed foot high 4.6mm 12S+04P public - JYP-M1204B-RT03R 90 degree angle (no fixed foot) bending can be divided into public with fixed and non fixed foot two feet, the signal terminal contact changed from 6.86mm to 5.59mm short, power signal terminal welding feet high 3.43mm Note: 1: the product can be used as the most long length 148mm, customers can according to the needs of any number of collocation power terminal and the signal terminal number and empty PIN position 2: the company can according to customer needs, design and development of products (such as: welding feet shorter, heightening the rubber core etc.) Product Application JYP series connector application area are tele. communication, internet network, LED power supply , for board to board, board to wire, module , server, UPS, storage, communication device etc. workingh environment Operating Temperature：-40℃~+125℃（Include 40℃ temperature rising） Relative Humidity：40℃时，95% Vibration： 20~500Hz， 490m/s² Shock： Acceleration 490m/ s² Electri Performance Contact Specification Contact Resistance （mΩ） Rated Current （A） Voltage Rating （V） Withstand Voltage lnsulation Resistance 500VDC/1Min 500VDC/1Min（2.54mm pitch）(2.54mm Pitch) ≤20mΩ Below 25 pcs,2.5A/pin 50V 1000V ≥2000MΩ 25-48 pcs,1.5A/pin Over 48pcs,1A/pin(5.08mm Pitch) ≤2mΩ 40A 250V 2500V ≥2000MΩ(6.35mm Pitch) 250V 2500V(7.62mm Pitch) 300V 2500V(9.525mm Pitch) 300V 2500V Technical Performance Contact Type Contact stability Single contact insertion force Single contact withdraw force≥10N ≤1N ≥0.2N≥30N ≤5N ≥2.2N Mechanical Life :250 times

Key Features

• Classification: board to board connector, power connector, round connector Tags: About Medlon，More connector products Name 04S+02P 180 degrees (short) - JYP-F0402E-VT21R direct parent (with fixed foot);
• high power signal terminal 2.20mm, the fixed foot high 4.7MM 03P mother - JYP-F0003D-RT03R (90 DEG bend with a fixed foot) bending parent can be divided into fixed and non fixed foot two feet, a power supply terminal contact points PG-1.07 and PH-3.57 two, leg fixed foot high 3.43mm, high 3.94mm 04S+02P 180 degrees straight (short) - JYP-M0402E-VT21R male (with fixed foot);
• high power signal terminal 2.2mm, the fixed foot high 4.6mm 12S+04P public - JYP-M1204B-RT03R 90 degree angle (no fixed foot) bending can be divided into public with fixed and non fixed foot two feet, the signal terminal contact changed from 6.86mm to 5.59mm short, power signal terminal welding feet high 3.43mm Note: 1: the product can be used as the most long length 148mm, customers can according to the needs of any number of collocation power terminal and the signal terminal number and empty PIN position 2: the company can according to customer needs, design and development of products (such as: welding feet shorter, heightening the rubber core etc.) Product Application JYP series connector application area are tele.
• communication, internet network, LED power supply , for board to board, board to wire, module , server, UPS, storage, communication device etc.
• workingh environment Operating Temperature：-40℃~+125℃（Include 40℃ temperature rising） Relative Humidity：40℃时，95% Vibration： 20~500Hz， 490m/s² Shock： Acceleration 490m/ s² Electri Performance Contact Specification Contact Resistance （mΩ） Rated Current （A） Voltage Rating （V） Withstand Voltage lnsulation Resistance 500VDC/1Min 500VDC/1Min（2.54mm pitch）(2.54mm Pitch) ≤20mΩ Below 25 pcs,2.5A/pin 50V 1000V ≥2000MΩ 25-48 pcs,1.5A/pin Over 48pcs,1A/pin(5.08mm Pitch) ≤2mΩ 40A 250V 2500V ≥2000MΩ(6.35mm Pitch) 250V 2500V(7.62mm Pitch) 300V 2500V(9.525mm Pitch) 300V 2500V Technical Performance Contact Type Contact stability Single contact insertion force Single contact withdraw force≥10N ≤1N ≥0.2N≥30N ≤5N ≥2.2N Mechanical Life :250 times

Technical Specifications

Applications

Server and AI compute power shelves, UPS and distributed power supplies, telecom and data centre equipment, energy storage systems, EV charging piles, solar inverters, industrial power distribution and medical instrumentation.
