distribution system for UPS, servers, storage enclosure, communication equipment , LED power supply, famous POWER SUPPLY power connector etc. More Products We are doing the OEM & ODM Connectors based on customers' needs

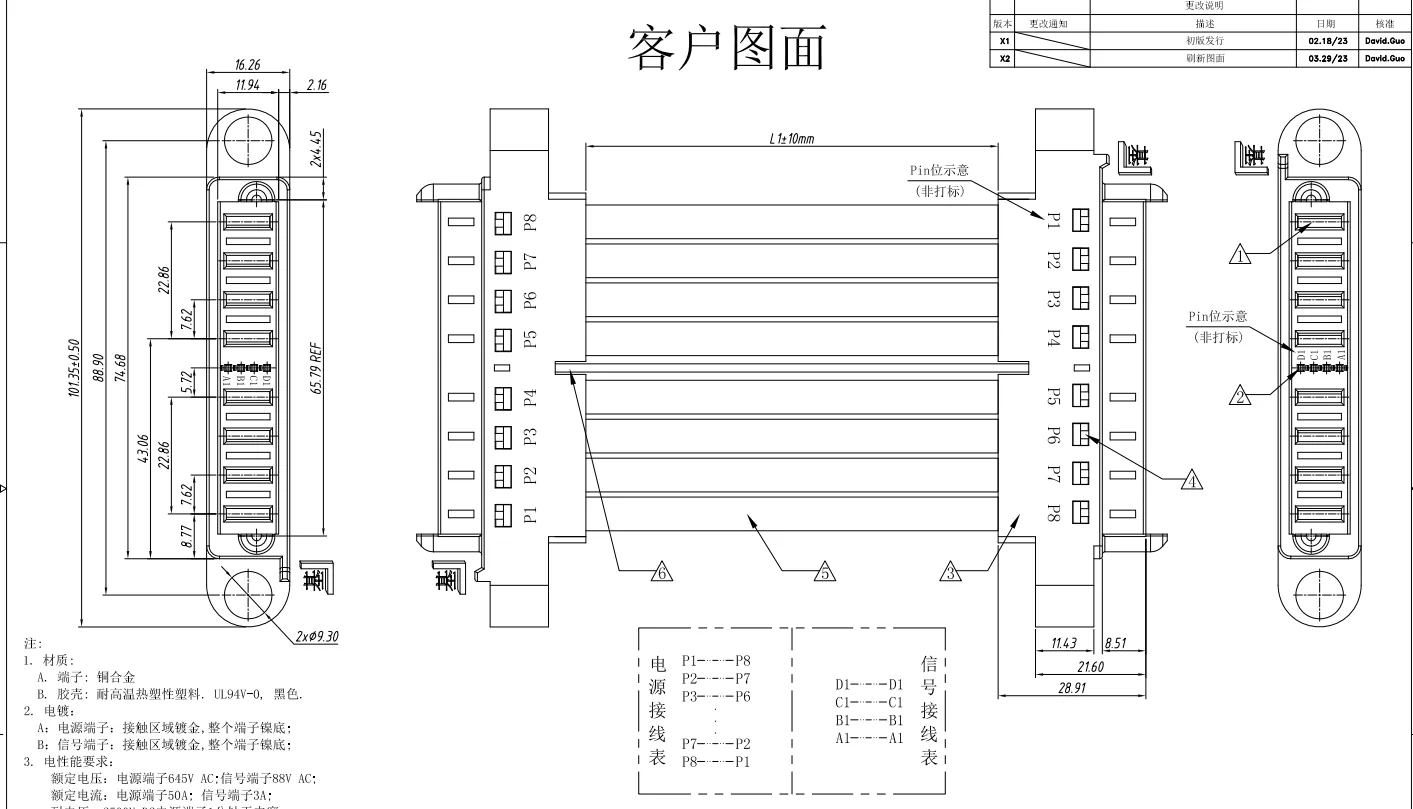

| Product model | JYP-F0408D-VT75R-ZZ-REV.x2/JYP-M0408D-RT92R |
|---|---|
| 触点类型 | Female / Contact |
| 触点数量 | 8 / 4 |
| 间距 | 7.62mm / 2.54mm |
| 额定电流 | 50A / 3A |
| 额定电压 | 645V AC / 88V AC |
| Withstanding Voltage | 2500VDC/min / 1000VDC/min |
| 绝缘电阻 | 2000MΩ min / 2000MΩ min |
| 接触电阻 | 2mΩ max / 20mΩ max |
| Material: Housing: PPA , UL94V-0, Black | Power contact:High conductivity copper alloy,partial or all gold plating / Signal contact:Phosphor bronze,partial or all gold plating |
| 工作温度 | Operating Temperature: -40 to 125℃ (including 40℃ temperature rise) / Relative Humidity: 95%(40℃) |
| 相对湿度 | 40℃时，95% |
| 振动 | 20~500Hz， 490m/s² |
| 冲击 | Acceleration 490m/ s² |
| 插拔次数 | 250 times |
| 电源触点 | High conductivity copper alloy,partial or all gold plating |
| 信号触点 | Phosphor bronze,partial or all gold plating |
服务器与 AI 算力电源框、UPS 与分布式供电、通信与数据中心设备、储能系统、充电桩、光伏逆变器、工业配电与医疗仪器。
Powerblade connector: 51939-669LF 5ACP +24S+5ACP , 24S+10P , right angle, solder to board, Female: VerticalMale: Right anglePower pin's current: 40A/pinSignal pin's current: 2.5A/pin MDL(MEDLON JYP-M2410D-RT45 & JYP-F2410D-VT45R)Hot Tags: b
Shenzhen Medlon Hardware Product is a leading global connector design and manufacturing company. We have more than 17 years of experience in providing a wide range of high-quality connectors for various industries such as Consumer electroni
Hot Tags: About Medlon，product list，board to board connector，power connector，round connector，high-power gold finger connector socket
Same function with STAUBLI CombiTaC modular connectors CombinConn modular connectors are widely used in the industrial field, and they can connect various types of connections, such as power supply Signal, data, thermocouples, coaxial, fibe
Shenzhen Medlon Hardware Product is a leading global connector design and manufacturing company. We have more than 17 years of experience in providing a wide range of high-quality connectors for various industries such as Consumer electroni
Shenzhen Medlon Hardware Product is a leading global connector design and manufacturing company. We have more than 17 years of experience in providing a wide range of high-quality connectors for various industries such as Consumer electroni
提供原厂料号、图纸或接口需求，我们在 24 小时内答复。
