FCI 51730 51721 powerbalde connector jyp-F0804B-VT01R JYP-M0804B-RT01R vertical right angle

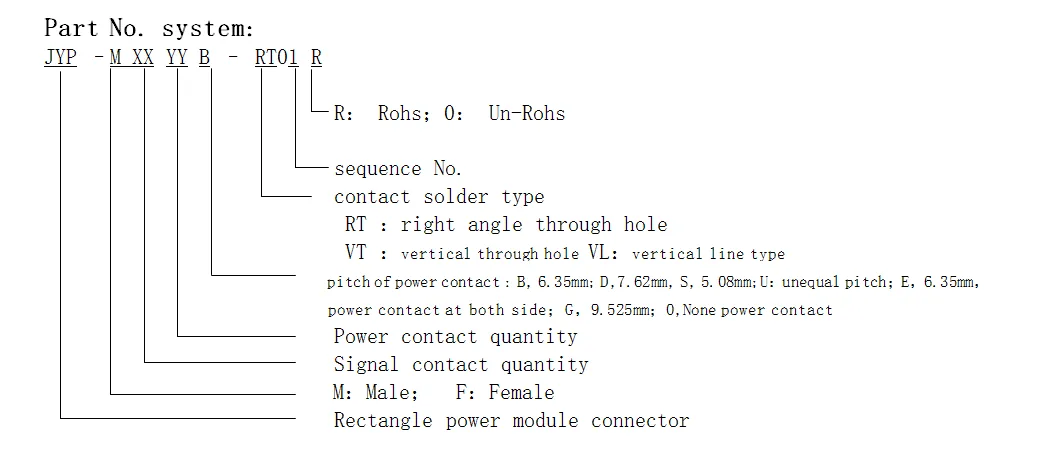

Product Overview

Powerblade connector: 8P +4S (24S+4P, 32S+8P) Female: Vertical Male: Right angle Power pin's current: 40A/pin Signal pin's current: 2.5A/pin Hot Tags: board to board connector,power connector,round connector Tags: About MEDLON, more connector products Product Application JYP series connector application area are tele. communication, internet network, LED power supply , for board to board, board to wire, module , server, UPS, storage, communication device etc. workingh environment Operating Temperature：-40℃~+125℃（Include 40℃ temperature rising） Relative Humidity：40℃时，95% Vibration： 20~500Hz， 490m/s² Shock： Acceleration 490m/ s² Electri Performance Contact Specification Contact Resistance （mΩ） Rated Current （A） Voltage Rating （V） Withstand Voltage lnsulation Resistance 500VDC/1Min 500VDC/1Min（2.54mm pitch）(2.54mm Pitch) ≤20mΩ Below 25 pcs,2.5A/pin 50V 1000V ≥2000MΩ 25-48 pcs,1.5A/pin Over 48pcs,1A/pin(5.08mm Pitch) ≤2mΩ 40A 250V 2500V ≥2000MΩ(6.35mm Pitch) 250V 2500V(7.62mm Pitch) 300V 2500V(9.525mm Pitch) 300V 2500V Technical Performance Contact Type Contact stability Single contact insertion force Single contact withdraw force≥10N ≤1N ≥0.2N≥30N ≤5N ≥2.2N Mechanical Life :250 times

Key Features

• Powerblade connector: 8P +4S (24S+4P, 32S+8P) Female: Vertical Male: Right angle Power pin's current: 40A/pin Signal pin's current: 2.5A/pin Hot Tags: board to board connector,power connector,round connector Tags: About MEDLON, more connector products Product Application JYP series connector application area are tele.
• communication, internet network, LED power supply , for board to board, board to wire, module , server, UPS, storage, communication device etc.
• workingh environment Operating Temperature：-40℃~+125℃（Include 40℃ temperature rising） Relative Humidity：40℃时，95% Vibration： 20~500Hz， 490m/s² Shock： Acceleration 490m/ s² Electri Performance Contact Specification Contact Resistance （mΩ） Rated Current （A） Voltage Rating （V） Withstand Voltage lnsulation Resistance 500VDC/1Min 500VDC/1Min（2.54mm pitch）(2.54mm Pitch) ≤20mΩ Below 25 pcs,2.5A/pin 50V 1000V ≥2000MΩ 25-48 pcs,1.5A/pin Over 48pcs,1A/pin(5.08mm Pitch) ≤2mΩ 40A 250V 2500V ≥2000MΩ(6.35mm Pitch) 250V 2500V(7.62mm Pitch) 300V 2500V(9.525mm Pitch) 300V 2500V Technical Performance Contact Type Contact stability Single contact insertion force Single contact withdraw force≥10N ≤1N ≥0.2N≥30N ≤5N ≥2.2N Mechanical Life :250 times

Technical Specifications

Applications

Server and AI compute power shelves, UPS and distributed power supplies, telecom and data centre equipment, energy storage systems, EV charging piles, solar inverters, industrial power distribution and medical instrumentation.
