JYP-F0402B-VT41R JYP-M0402B-VT41R

Product Overview

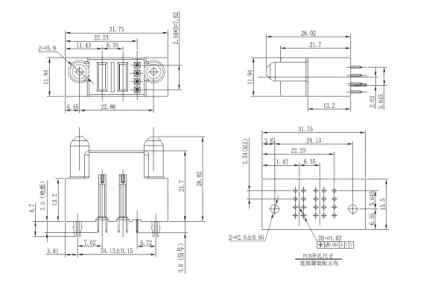

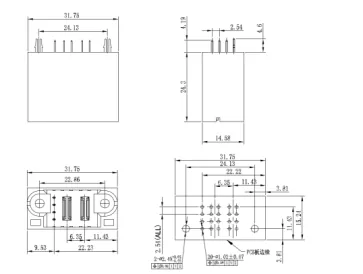

04S+02P 180° VT Female——JYP-F0402B-VT41R(with a fixed foot) Add Hight 9mm, terminal's height : 3.5mm，The signal terminal is 3.6mm hight, fixed footprint is4.7mm 04S+02P - JYP-M0402B-VT41R 180 degrees straight male (with fixed foot) rubber core power terminal is increased by 11.6mm, high 4.19mm, high 4.2mm signal terminals, the fixed foot high 4.6mm Note: 1: the product is currently only public development of straight straight parent heightening, now make products with short PIN, customers can according to the needs of any number of collocation power terminal and the signal terminal number and empty PIN position 2: the company can according to customer needs, design and development of products (such as: welding foot change in short, the rubber core and higher) Product Application JYP series connector application area are tele. communication, internet network, LED power supply , for board to board, board to wire, module , server, UPS, storage, communication device etc. workingh environment Operating Temperature：-40℃~+125℃（Include 40℃ temperature rising） Relative Humidity：40℃时，95% Vibration： 20~500Hz， 490m/s² Shock： Acceleration 490m/ s² Electri Performance Contact Specification Contact Resistance （mΩ） Rated Current （A） Voltage Rating （V） Withstand Voltage lnsulation Resistance 500VDC/1Min 500VDC/1Min（2.54mm pitch）(2.54mm Pitch) ≤20mΩ Below 25 pcs,2.5A/pin 50V 1000V ≥2000MΩ 25-48 pcs,1.5A/pin Over 48pcs,1A/pin(5.08mm Pitch) ≤2mΩ 40A 250V 2500V ≥2000MΩ(6.35mm Pitch) 250V 2500V(7.62mm Pitch) 300V 2500V(9.525mm Pitch) 300V 2500V Technical Performance Contact Type Contact stability Single contact insertion force Single contact withdraw force≥10N ≤1N ≥0.2N≥30N ≤5N ≥2.2N Mechanical Life :250 times

Key Features

• 04S+02P 180° VT Female——JYP-F0402B-VT41R(with a fixed foot) Add Hight 9mm, terminal's height : 3.5mm，The signal terminal is 3.6mm hight, fixed footprint is4.7mm 04S+02P - JYP-M0402B-VT41R 180 degrees straight male (with fixed foot) rubber core power terminal is increased by 11.6mm, high 4.19mm, high 4.2mm signal terminals, the fixed foot high 4.6mm Note: 1: the product is currently only public development of straight straight parent heightening, now make products with short PIN, customers can according to the needs of any number of collocation power terminal and the signal terminal number and empty PIN position 2: the company can according to customer needs, design and development of products (such as: welding foot change in short, the rubber core and higher) Product Application JYP series connector application area are tele.
• communication, internet network, LED power supply , for board to board, board to wire, module , server, UPS, storage, communication device etc.
• workingh environment Operating Temperature：-40℃~+125℃（Include 40℃ temperature rising） Relative Humidity：40℃时，95% Vibration： 20~500Hz， 490m/s² Shock： Acceleration 490m/ s² Electri Performance Contact Specification Contact Resistance （mΩ） Rated Current （A） Voltage Rating （V） Withstand Voltage lnsulation Resistance 500VDC/1Min 500VDC/1Min（2.54mm pitch）(2.54mm Pitch) ≤20mΩ Below 25 pcs,2.5A/pin 50V 1000V ≥2000MΩ 25-48 pcs,1.5A/pin Over 48pcs,1A/pin(5.08mm Pitch) ≤2mΩ 40A 250V 2500V ≥2000MΩ(6.35mm Pitch) 250V 2500V(7.62mm Pitch) 300V 2500V(9.525mm Pitch) 300V 2500V Technical Performance Contact Type Contact stability Single contact insertion force Single contact withdraw force≥10N ≤1N ≥0.2N≥30N ≤5N ≥2.2N Mechanical Life :250 times
