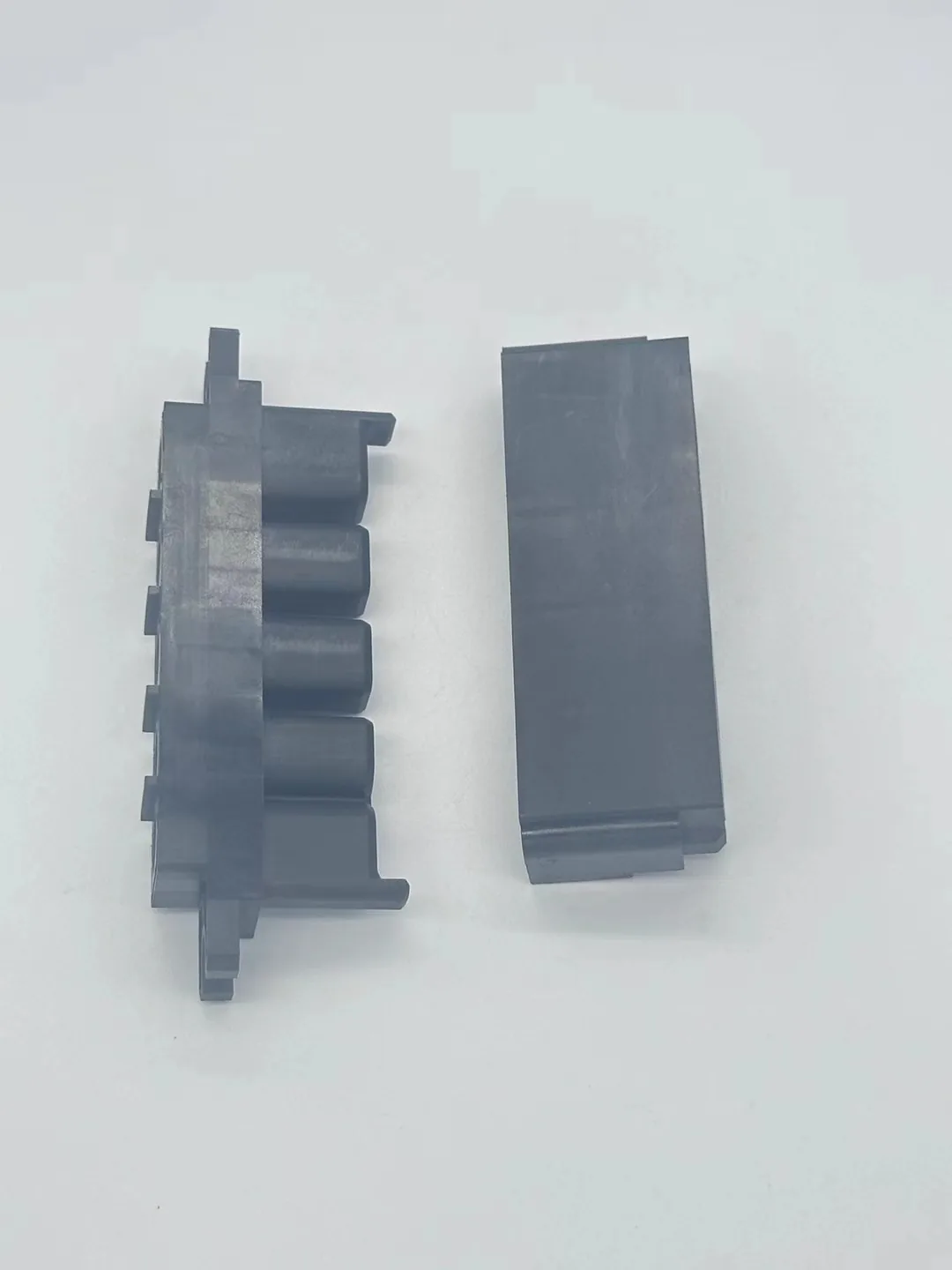

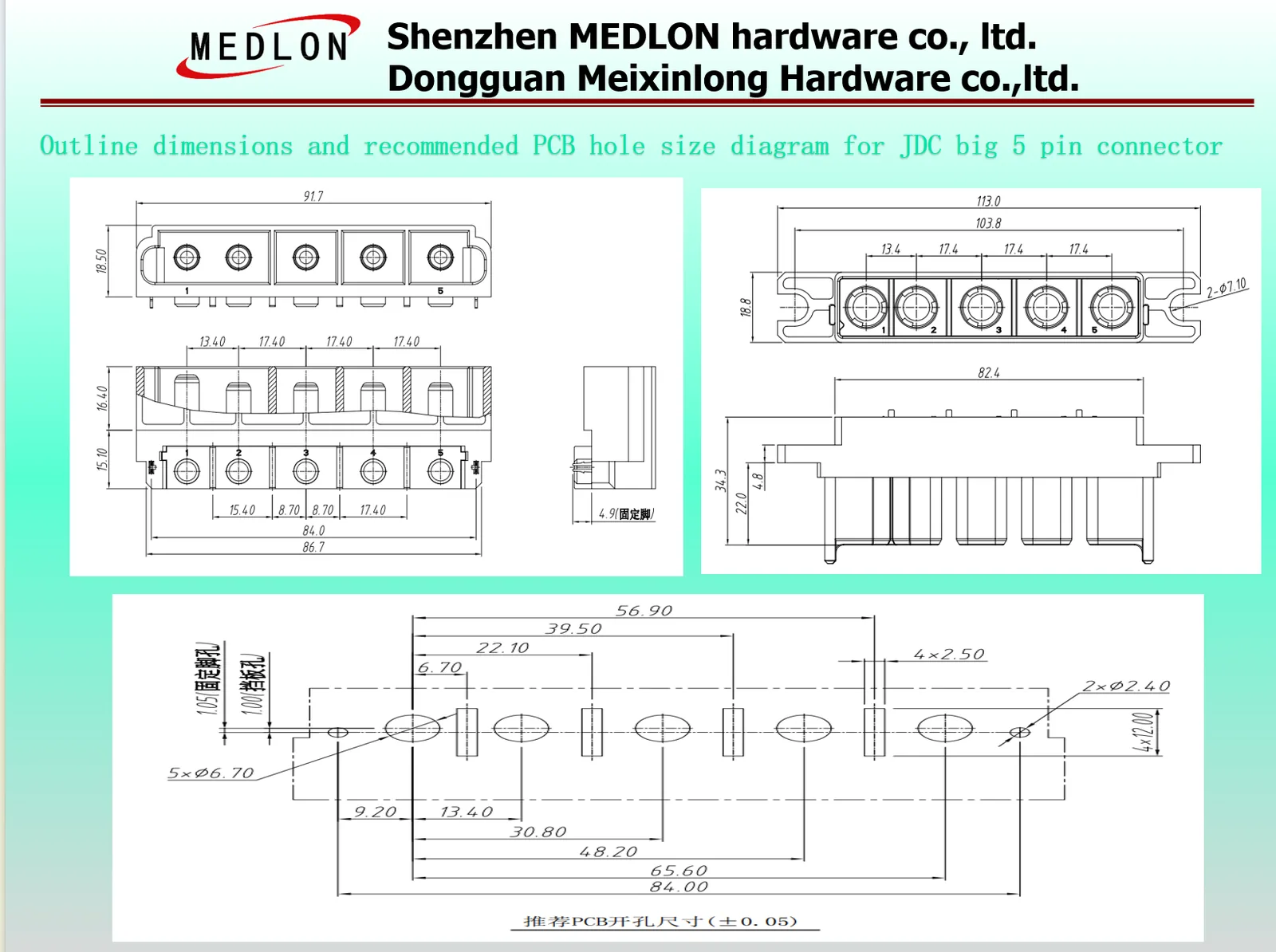

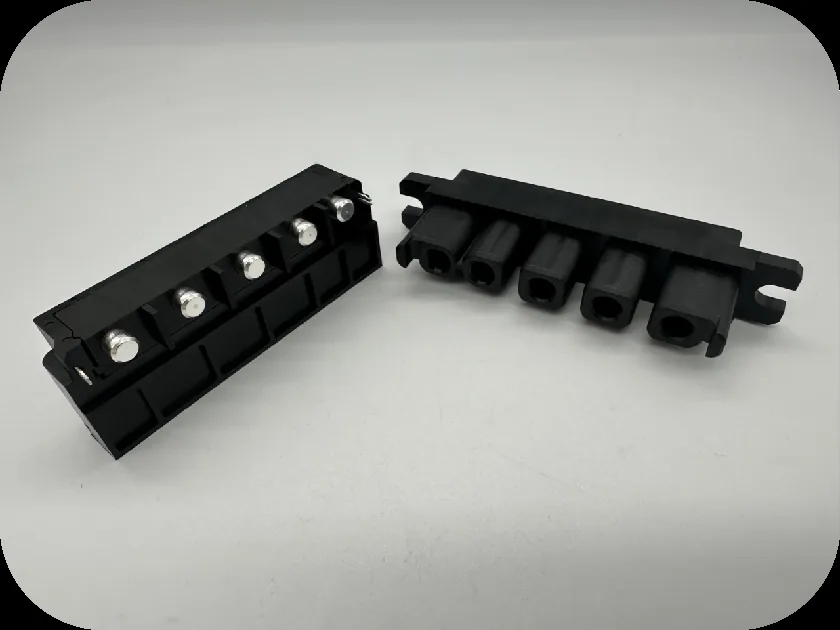

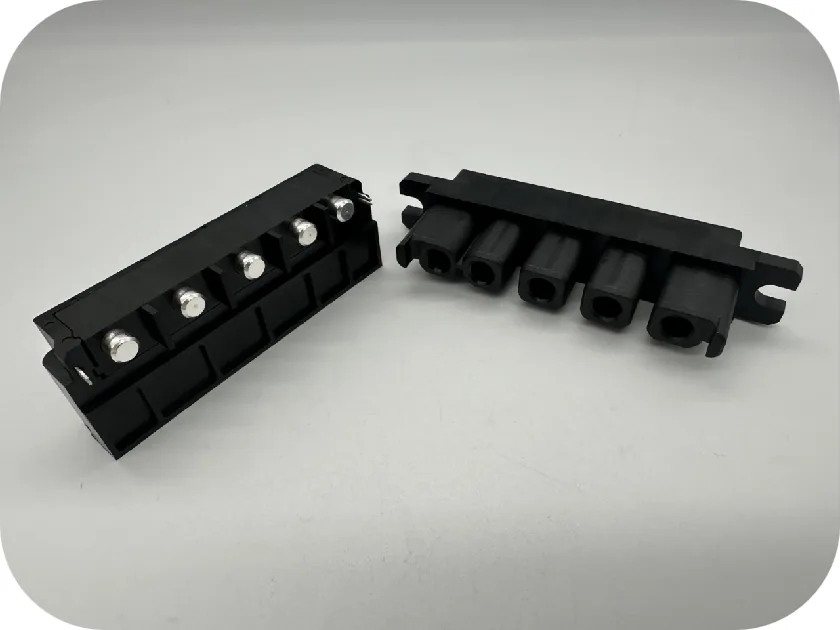

JDC Introduction : Big 5 pin connector Material: Insulator: Engineering plastic, UL94-V0, black; 4 # Pin-hole parts: Copper alloy, surface silver plated; Fixed feet: copper alloy, surface tin plated; Electrical performance: Rated current: 115A; Voltage withstand: 1500V AC; Contact impedance (initial value): ≤ 0.6m Ω; Insulation resistance: ≥ 3000M Ω (normal) Relative humidity: 98% (40 ℃); Mechanical life: 500 times Working environment: -40 ℃~125 ℃
| Insulator | Engineering plastic, UL94-V0, black |
|---|---|
| Pin-hole parts | Copper alloy, surface silver plated |
| Mounting | copper alloy, surface tin plated |
| Rated Current | 115A |
| Withstanding Voltage | 1500V AC |
| Contact Resistance | ≤ 0.6m Ω |
| Insulation Resistance | ≥ 3000M Ω (normal) |
| Relative Humidity | 98% (40 ℃) |
| Mating Cycles | 500 times |
| Operating Temperature | -40 ℃~125 ℃ |
Server and AI compute power shelves, UPS and distributed power supplies, telecom and data centre equipment, energy storage systems, EV charging piles, solar inverters, industrial power distribution and medical instrumentation.
