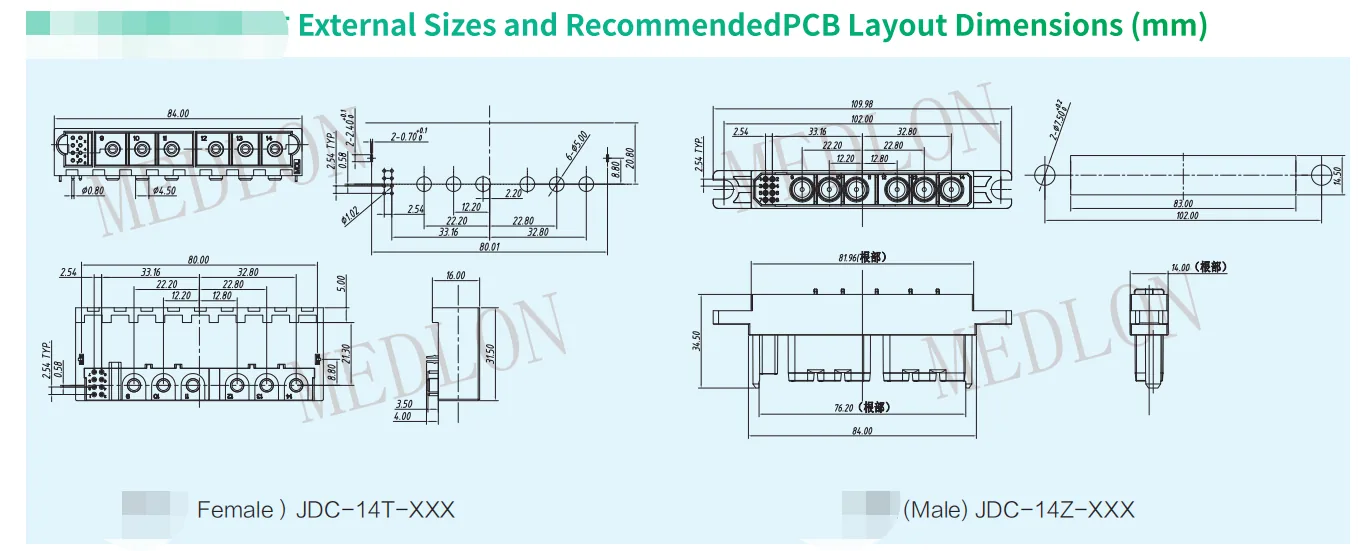

Φ High current 14 Pin (8S+6P) 70A 1000V AC Drawer Type AC Charging Pile Module Connector board to board connector Product Information Main Technical Parameters Product Model: JDC-14T-001 & JDC-14Z-001 Gender: Male and Female Mechanical Life: 200 times Spec: Φ5 for power, 22# for singal Rated Current: φ5 70A (6 pin for power); 3A (22# 8 pin for signal) Rated Voltage : 1000V AC for power Withstand Voltage: 2000V AC (Normal), 22# 1000V AC; Insulation Resistance: ≥3000MΩ (Normal) Contact Resistance: ≤1mΩ for power;≤8mΩ for signal Surface Finish: Plated Silver or Gold Materials Housing Material: PET , UL94V-0, Black Pin and Jack: Brass Crown Spring: Beryllium bronze Operating Environment Operating Temperature: -40 to 125℃ JDC-14Z-001 board to board connector

产品特点

• Φ High current 14 Pin (8S+6P) 70A 1000V AC Drawer Type AC Charging Pile Module Connector board to board connector Product Information Main Technical Parameters Product Model: JDC-14T-001 & JDC-14Z-001 Gender: Male and Female Mechanical Life: 200 times Spec: Φ5 for power, 22# for singal Rated Current: φ5 70A (6 pin for power);
• 3A (22# 8 pin for signal) Rated Voltage : 1000V AC for power Withstand Voltage: 2000V AC (Normal), 22# 1000V AC;
• Insulation Resistance: ≥3000MΩ (Normal) Contact Resistance: ≤1mΩ for power;≤8mΩ for signal Surface Finish: Plated Silver or Gold Materials Housing Material: PET , UL94V-0, Black Pin and Jack: Brass Crown Spring: Beryllium bronze Operating Environment Operating Temperature: -40 to 125℃ JDC-14Z-001 board to board connector

应用领域

服务器与 AI 算力电源框、UPS 与分布式供电、通信与数据中心设备、储能系统、充电桩、光伏逆变器、工业配电与医疗仪器。
