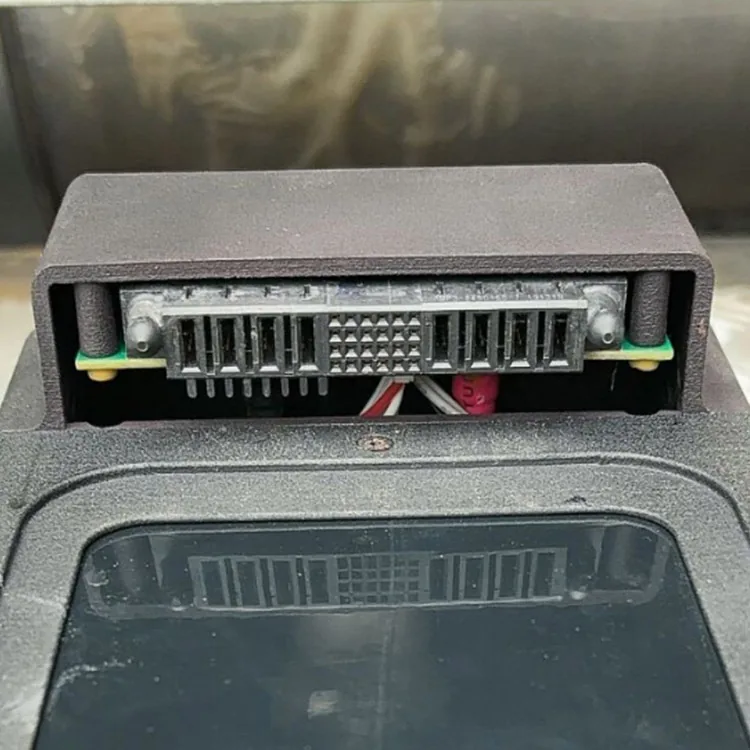

Domestic replacement of Amphenol powerblade connector power blade connector JYP - M2408B - RT47R-Power blade connetor blade power connector powerblade connector healthy connector mass health connector wire connector ma health connector battery terminal connector

Product Overview

1. Material A. Terminal: High performance copper alloy B. Rubber shell: High temperature resistant thermoplastic UL94V-0， black 2. Electroplating: A. Power terminal: gold-plated in the contact area, tin plated in the soldering area, nickel plated throughout the entire terminal B. Signal terminals: Gold plated in the contact area, tin plated in the soldering area, and nickel plated throughout the entire terminal; C. Fixed feet: integral nickel base matte tin; 3. Electrical performance requirements: Rated voltage: power terminal 250Vac; Signal terminal 50Vac; Rated current: power terminal 40A; signal terminal 2.5A: withstand voltage: 2500VDC power terminal 1 minute no breakdown: 1000VDC signal terminal 1 minute no breakdown Insulation resistance: 2000MEGOHMMIN power terminal: 2000MEGOHMMIN signal terminal; Contact resistance: power terminal ≤ 2m2; signal terminal ≤ 20m Ω; operating temperature: -40 ℃ TO+125 ℃ 4. Mechanical performance requirements: Plug and unplug lifespan: 250 times; 5. Packaging method: vacuum formed box packaging; 6. The product complies with the latest ROHS standard 7. Order part number: JYP-F2408B-RT47R

Key Features

• Terminal: High performance copper alloy B.
• Rubber shell: High temperature resistant thermoplastic UL94V-0， black 2.
• Power terminal: gold-plated in the contact area, tin plated in the soldering area, nickel plated throughout the entire terminal B.
• Signal terminals: Gold plated in the contact area, tin plated in the soldering area, and nickel plated throughout the entire terminal;
• Fixed feet: integral nickel base matte tin;

Applications

Server and AI compute power shelves, UPS and distributed power supplies, telecom and data centre equipment, energy storage systems, EV charging piles, solar inverters, industrial power distribution and medical instrumentation.
